IN-HOUSE LABORATORY

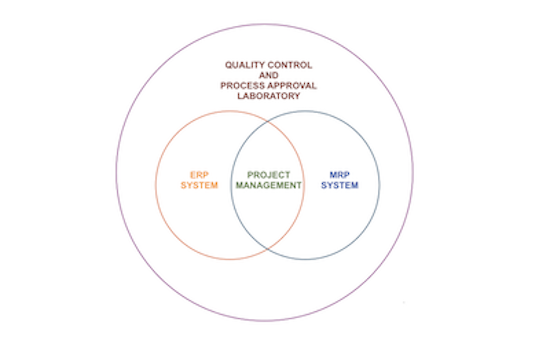

Our business discipline is based on fully impartial control and validation of all processes and tolerances based on international standards and customer requirements. All process controls and approvals are managed and recorded in the HSF QCPA ERP System.
HSF believes that accuracy is of absolute importance in the machining and fabrication of aerospace and aircraft parts, which require the highest level of performance under very high-stress conditions during flight. HSF QCPA Laboratory can meet the requirements specified in ISO 17025, AS 9100, and AS 9003 standards.
HSF applies three levels for AQL: Critical (Catastrophic) 100 % acceptance, Major maximum 0.65 % rejection (RQL), and Minor maximum 2.5 % rejection (RQL) which are valid unless otherwise specified. HSF QCPA Policy manages the AQL according to ANSI/ASQ Z1.4, ANSI/ASQ Z1.9, ISO 2859-1, ISO 3534-2, SAE AS9138, and SAE ARP9013 standards.
HSF expertly designs high-quality, complex machined components and products. HSF accepts and applies that all supplied parts must comply with all requirements of the Purchase Order, Applicable Standards, Engineering Drawing and / or product description requirements.
The video record shows surface failures inspected using the 3D Microscope under 10X magnification by HSF QCPA Laboratory.
According to HSF Quality Control and Process Approval (QCPA) Policy, quality control is a critical process for HSF, ensuring safety and reliability of the product produced. The QCPA involves rigorous testing, inspections, and adherence to standards to identify and manage potential issues that could compromise the integrity of the products. This process begins at the design stage and continues through production, maintenance, and servicing.
With a quality approach based on international standards, flight safety, and customer satisfaction, HSF continues to make a name for itself daily and build confidence with our sustainable achievements, thanks to our employees. Our most valuable asset is by integrating high-tech 2D or 3D, contact or non-contact, fixed or mobile quality control equipment into our business, as well as embedding a philosophy of constant development in everything we do, and always aiming for the best.
HSF QCPA Laboratory can, with impartial quality and process approval discipline, apply over 45 Non-Destructive and Destructive Testing procedures. More than 99.9% of our quality control processes are carried out in-house by trained personnel. The non-destructive and destructive quality control laboratory was established at HSF in accordance with the sensitivity, accuracy, and traceability criteria of the aviation industry. The largest share of HSF's annual budget is allocated to training and quality control updates, with new machinery investments.
All production processes, including micro-laser and argon welding, as well as quality control processes, are carried out in-house at HSF.
Unless otherwise specified or required by the customer or production standard, HSF is performing the radiography inspection for the following:

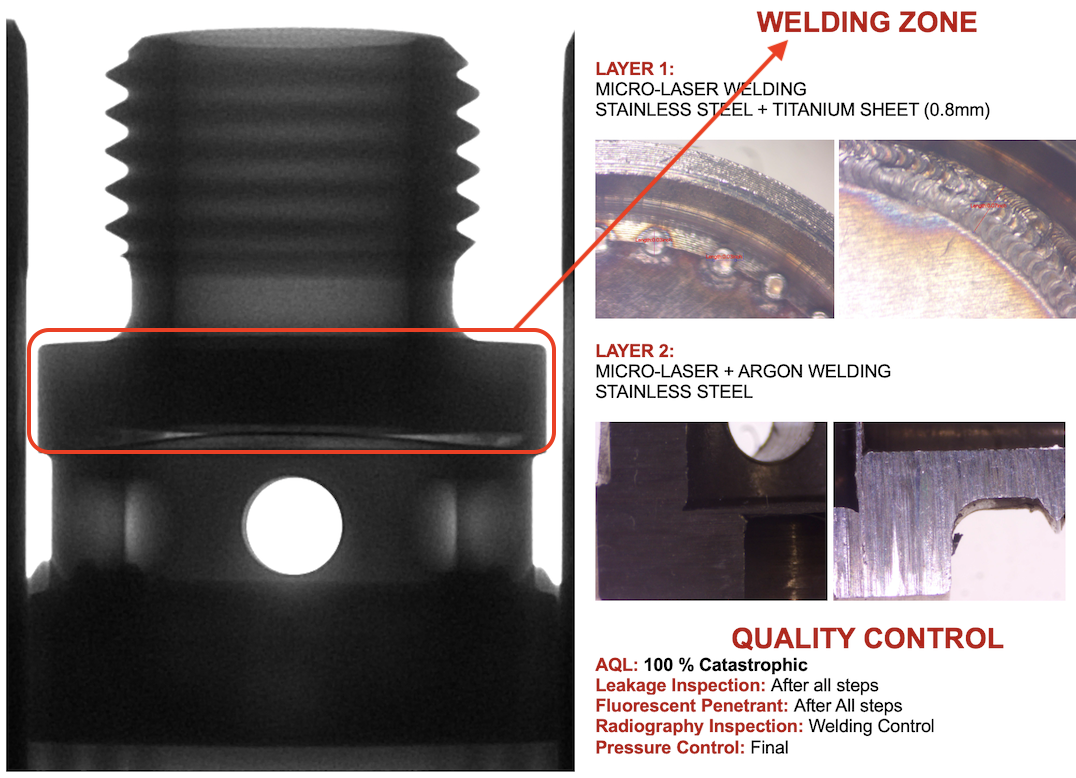

- Welding Inspection: to observe the weld adhering and to inspect for a weld gap or crack.
- Non-Touch Area Inspection: to inspect and measure the areas that cannot be inspected visually or with any measurement device.
- After Heat Treatment: Internal faces surface (for areas too small to be checked by gauge or visual inspection) deformation controls after the heat treatment process.
- Material Defect Inspection,
HSF radiography capabilities do not include the inspection of electronic components, pressure tubes, or similar pressure vessels, or explosive materials, as these materials are outside HSF's capabilities.
Application Limitation: HSF does not use radiographic examination in the following processes; for these processes, HSF uses Fluorescent Penetrant and/or Eddy Current inspection capabilities.
- Discontinuities cannot be detected unless they are essentially parallel to the radiation beam.
- Tight cracks in thick sections may not be detected at all, even when properly oriented.

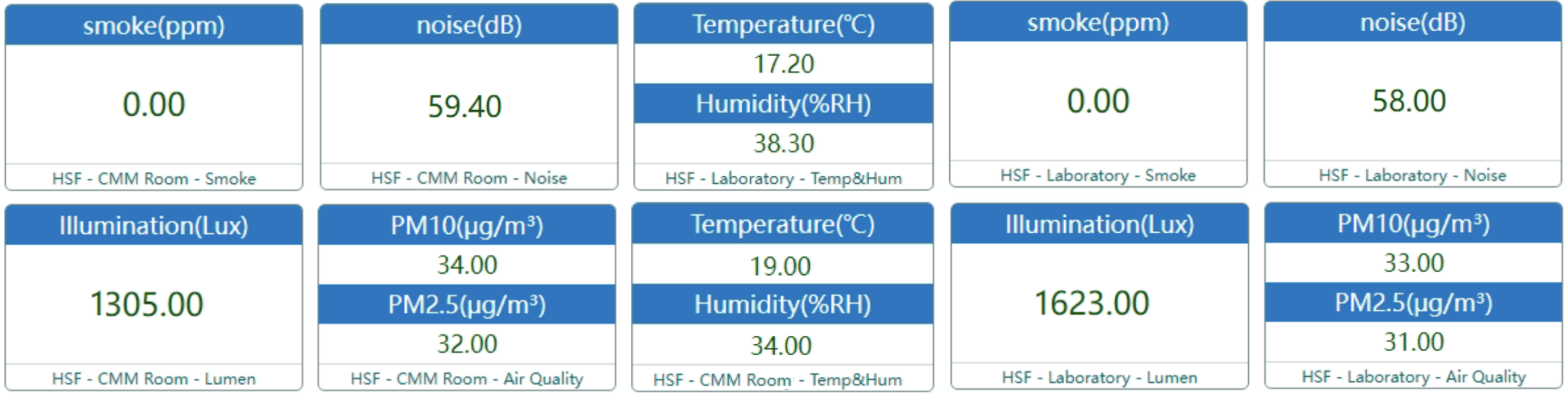

Laboratory Environmental Conditions are monitored by the EMS. The HSF QCPA Laboratory (which also includes the Warehouse, Production Zone, and Management Building) is monitored 24/7 to maintain required temperature, humidity, noise, dust, and CO2 levels in accordance with MIL-STD-810 (Rev. H) standard.
Coordinate Measuring Machine
Visual Measuring Machine (300x450)
Visual Measuring Machine (350x250)
Radiographic Inspection System (X-Ray - Radioscopy) (130Kv)
Full Automatic Dimension Measuring Device (350x250)
Computer Controlled X-Ray Coating Thickness Measuring Device
Profile Projector (450x300)
Profile Projector (350x200)
XRF - Optical Emission Spectrometer

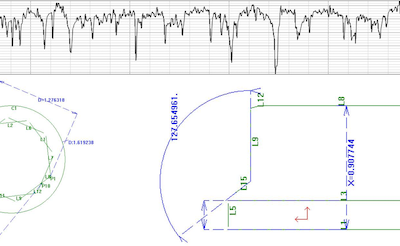

Computer Controlled Roughness and Waviness Tester (+/- 1000 µm) with Inner Hole and Thread Measurement Sensors
Surface Roughness Measuring / Portable Model

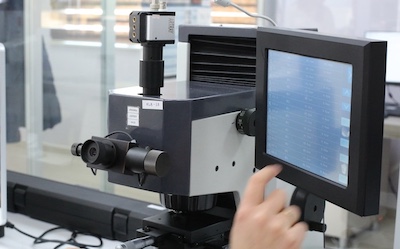

Optical Inspection Measuring Microscopes (4X - 100X)
Optical Inspection Measuring Microscope (4X - 100X) - With Visual Inspection System
Optical Inspection Measuring Microscope (4X - 2000X) - Micro Laser Welding UV/IR Inspection Kits
Optical Inspection Measuring Microscope (4X - 5000X) - With Visual Inspection System
Optical Inspection Measuring Microscope (4X - 50X) - 3D Inspection System
Metallurgical Inspection Microscope (4X - 100X) (2 SETS) - 2024 Updated Metal Analysis Library
Eddy Current (IACS %110) Measuring
Ultrasonic Flaw Dedector (2 SETS)
Portable Coating Analysis Measuring Device (2 SETS)
Portable Hardness Test Device with Leeb and Pen Probes (2 SETS)
Spectrocolorreader Liquid Transform Infrared Analyzer Wavelengths 440nm, 550nm, 600nm
Permeability Meters (ASTM A342) for Magnetic Materials
Desktop - Water Quality Test Unit (Temperature, Salinity, PH, TDS)
Portable - Water Quality Test Unit (Temperature, Salinity, PH, TDS)
Viscosity Measurement for Kinematic of Transparent and Opaque Liquids with Validation of Rotational
Liquid Densitometer with 0.0001—99.9999g/cm3 Measurement Range
Moisture Analyzer for Coated Products with Moisture accurancy %0.5g Readability 0.01 g (0.1%)
Computer Controlled Precision Balance - Repeatability ±0.0002g Accuracy 0.001g (2 SETS)
AMS-STD-595A 692 Color The Complete Chip Set in Separate Envelope
AMS2750 Pyrometry IR Sensor (350-1400 C) with Control Software
AMS2750 Pyrometry Load Sensor System (350-1400 C) with Control Software (3 SETS)
Lubricant Preparing Unit AS87132 Cetyl Alcohol Lubrication - Computer Controlled Magnetic Hot Plate Stirrer (Max. 310C - 590F, 1500rpm)
Lubricant Preparing Unit AS5272 REV.F Solid Film Lubrication - Computer Controlled Magnetic Hot Plate Stirrer (Max. 500C - 932F, 3000rpm)
Fluorescent Penetrant Inspection
Magnetic Particle Inspection
ASTM E3022 UV NDT 365nm Led Black Detection Light
Micro-Biologic Measuring Microscope (4X - 5000X)
Computer Controlled Tensile Strength Test Device - 600kN
ASTM E3022 UV NDT 365nm Led Black Detection Light
Computer Controlled Fastener Torque Tension Test Machine - 50kN
Computer Auto-Controlled Impact Tester - 150J/300J
Computer Controlled Coulometric-Electrolytic Multi-Layers Coating Thickness Measuring Device
Salt Sprey Test Unit With Computer Controlled Water Analysis and Tracking System
Programmable Temperature and Humidity Testing Chamber (-80° / -112°F - 150°C / 302°F) Temperature/Humidity Analysis and Tracking System
Desktop Digital Hardness Test Device - Rockwell - (4 SETS)
Desktop Micro Vickers Hardness Test Device - (2 SETS)
Desktop Analog Hardness Test Device - Rockwell
Hydrogen Embrittlement - ASTM B850, ASTM F519, ISO 15330
Specimen Preparing Unit (Cutting, Mounting, Planar Grinding, Rough Polishing)
